ROM Reconstruction

Goal: Rebuild all firmware ROMs from disassembled source with 100% byte accuracy.

Firmware Version History

Official firmware updates were distributed on floppy disk. All versions are archived at archive.org.

Main Board Firmware

Version Release Date Notes
v5 1997-11-12 Earliest available
v6 1998-01-16
v7 1998-06-26
v8 1998-11-13
v9 1999-01-26
v10 1999-08-02 Current disassembly target

HD-AE5000 Firmware

Version Release Date Notes
v1.10i 1998-07-06 Initial release
v1.15i 1998-10-13
v2.0i 1999-01-15 Added lyrics display

Current Status

ROM Size Match % Bytes Off Source File
Main CPU 2MB 100% 0 maincpu/kn5000_v10_program.s
Sub CPU Payload 192KB 100% 0 subcpu/kn5000_subprogram_v142.s
Sub CPU Boot 128KB 100% 0 subcpu/boot/kn5000_subcpu_boot.s
Table Data 2MB 100% 0 table_data/kn5000_table_data.s
Custom Data 1MB 100% 0 custom_data/kn5000_custom_data.s
HDAE5000 (HD Expansion) 512KB 100% 0 hdae5000/hd-ae5000_v2_06i.s

Disassembly Status Visualization

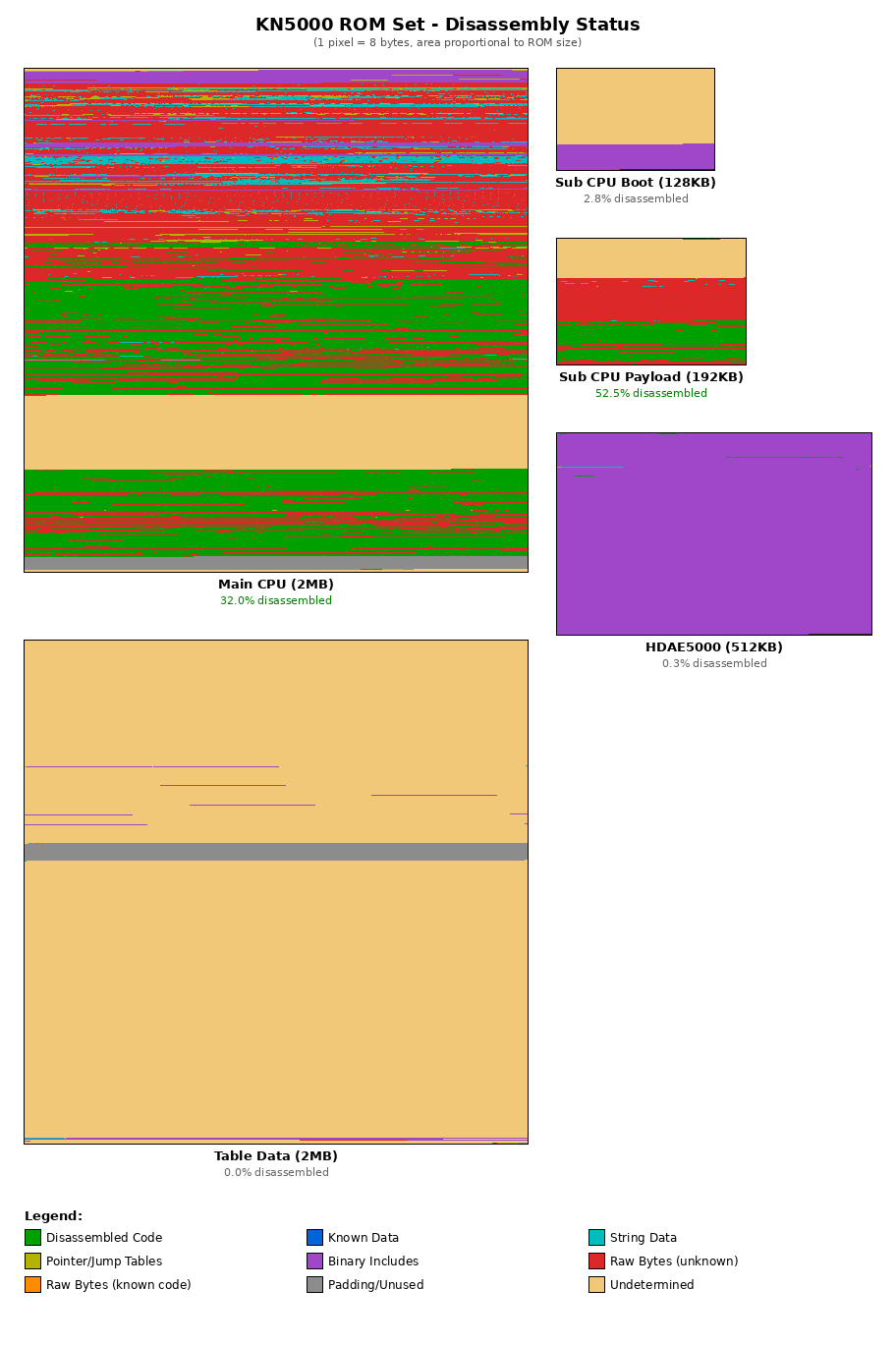

The diagram below shows the disassembly status of each ROM component. Colors indicate the type of content at each address:

ROM Status Diagram

Legend:

  • Green = Disassembled code (symbolic instructions with meaningful labels)
  • Blue = Known data structures (documented tables, configs)
  • Cyan = String data (text, messages, labels)
  • Light Green = Pointer/jump tables (address references)
  • Purple = Binary includes (external files not yet analyzed)
  • Red = Raw bytes with unknown meaning (needs investigation)
  • Orange = Raw bytes known to be code (awaiting disassembly)
  • Gray = Padding/unused (0x00 or 0xFF fill)
  • Yellow = Undetermined (not yet categorized)

The width of each rectangle is proportional to the ROM’s file size. This visualization is automatically regenerated via make website to stay in sync with disassembly progress.

Original ROM Files

The original firmware dumps are stored in original_ROMs/:

File Size Description
kn5000_v10_program.rom 2MB Main CPU program ROM
kn5000_subprogram_v142.rom 192KB Sub CPU payload (sent by main CPU at boot)
kn5000_subcpu_boot.ic30 128KB Sub CPU boot ROM
kn5000_table_data_rom_odd.ic1 1MB Table data ROM (odd bytes)
kn5000_table_data_rom_even.ic3 1MB Table data ROM (even bytes)
kn5000_custom_data.ic19 1MB Custom data flash (user storage)
hd-ae5000_v2_06i.ic4 512KB HDAE5000 hard disk expansion ROM

Reference disassembly files (.unidasm) are generated with MAME’s unidasm tool for analysis.

Assembler

The project uses a custom LLVM backend (llvm-mc -triple=tlcs900) for assembly. All ~370,000 instructions are encoded natively — no workaround macros needed.

Build Process:

  1. llvm-mc assembles .s files to ELF object files
  2. ld.lld links with a linker script to set the ROM base address
  3. llvm-objcopy extracts the raw binary from the ELF
  4. compare_roms.py verifies byte-for-byte match against originals

History: The project originally used ASL (Alfred Arnold’s Macro Assembler), which only supported TMP96C141 — requiring 110+ workaround macros for TMP94C241F-specific instructions. The LLVM backend was developed to encode all TLCS-900/H2 instructions natively. ASL sources are archived in archive/asl/ for reference.

Milestone: 100% Byte-Matching ROMs

As of March 2026, all six ROMs rebuild with 100% byte accuracy using LLVM assembly (~370,000 native instructions, 0 workaround macros):

  • Main CPU (2MB) - Complete disassembly with symbolic labels (239,683 native instructions, 0 code .byte remaining)
  • Sub CPU Payload (192KB) - Full protocol implementation (35,747 instructions)
  • Sub CPU Boot (128KB) - Boot ROM with VGA initialization (1,357 instructions)
  • Table Data (2MB) - Feature demo, wallpapers, icons, bootloader (1,678 instructions)
  • HDAE5000 (512KB) - Hard disk expansion firmware (502 instructions)
  • Custom Data (1MB) - User storage (data-only, byte-exact reconstruction)

Source File Organization

Main CPU

The Main CPU disassembly is organized into modular source files for maintainability:

File Lines Description
maincpu/kn5000_v10_program.s ~43,000 Main source file (includes 94+ other files)
maincpu/gui_constants.s 57 Display state variables, offscreen buffers
maincpu/fdc_constants.s 75 FDC I/O addresses, commands, status bits
maincpu/fdc_routines.s 1,403 FDC read/write/seek routines
maincpu/midi_encoder_constants.s 85 MIDI CC and encoder RAM/ROM addresses
maincpu/midi_encoder_routines.s 268 Encoder dispatch and MIDI CC processing
maincpu/cpanel_constants.s 164 Control panel state, buffers, button/LED mappings
maincpu/cpanel_routines.s 1,506 Control panel serial protocol handlers
maincpu/sysex_routines.s 239 MIDI System Exclusive message handlers
maincpu/demo_routines.s 290 Feature Demo mode handlers
maincpu/computer_interface_config.s 310 Computer Interface connection configuration
maincpu/computer_interface_pcg.s 703 Computer Interface PCG (Program Change) output
maincpu/midi_serial_routines.s 995 MIDI serial communication (SC0)
maincpu/sound_editor_routines.s 629 Sound Editor mode and title functions
maincpu/smf_playback.s 695 SMF song playback routines
maincpu/smf_config_routines.s 3,263 SMF configuration and slot parameters
maincpu/seq_step_routines.s 3,089 Step-mode sequencer routines
maincpu/audio_cmd_encoder.s 3,100 Audio command byte formatter
maincpu/semenu_routines.s 3,431 Sound editor menu system
maincpu/setwall_routines.s 1,940 Accompaniment style wall parser
maincpu/rhythm_routines.s 1,580 Rhythm pattern processing
maincpu/accompseq_routines.s 1,961 Accompaniment sequencer
maincpu/audioinit_routines.s 2,505 Audio subsystem initialization
maincpu/bmdredit_routines.s 4,434 Beat/drum editor
maincpu/drawing_primitives.s 4,567 Line/box/frame/bitmap/string drawing
maincpu/bitmap_out_routines.s 4,347 Bitmap output/display compositing
maincpu/rvari_routines.s 2,752 Registration variation selection UI
maincpu/psgridbox_routines.s 1,138 Performance settings grid box UI
maincpu/fdemotext_routines.s 2,334 Feature demo text rendering
maincpu/sndparam_routines.s 2,042 Sound parameter lookup/storage
maincpu/midipkt_routines.s 1,178 MIDI packet construction
maincpu/msp_factory_defaults.s — MSP factory default settings
maincpu/file_io/title_handlers.s 349 File I/O title entry handlers
maincpu/file_io/disk_operations.s 1,297 File copy, rename, format, disk info
maincpu/file_io/filename_password.s 807 Filename and password UI
maincpu/file_io/composer_filters.s 968 Composer load and filter operations
maincpu/file_io/smf_operations.s 1,312 Standard MIDI File operations
maincpu/file_io/wallpaper.s 519 Wallpaper loading
maincpu/file_io/single_load.s 2,298 Single file load operations
maincpu/file_io/medley.s 4,690 Medley playback (disk, internal, SMF, PD, doc)
maincpu/file_io/misc_ui.s 969 Jump insert, priority, setup, filename box
maincpu/accompaniment_engine.s 32,516 Accompaniment, auto-play, pedal, style engine
maincpu/sequencer_engine.s 32,056 Sequencer part/play, note editing
maincpu/note_voice_mapping.s 26,090 Note mapping, voice management, MIDI routing
maincpu/ui_widget_defs.s 19,616 UI widget definitions, screen/window/view IDs
maincpu/sound_editor_ui.s 16,567 Sound editor menus and grids
maincpu/drawbar_panel_ui.s 15,526 Drawbar, accordion, panel memory UI
maincpu/sequencer_ui.s 14,292 Sequencer playback/edit UI
maincpu/mode_screens.s 12,905 MSA mode, panel memory, effect mode screens
maincpu/midi_voice_routing.s 11,498 MIDI dispatch, voice routing
maincpu/scoop_display.s 10,363 Display update manager
maincpu/naka_dispatch.s 9,746 Central dispatch, UI state
maincpu/naka_descriptors.s 9,324 Descriptor tables, bitmap data
maincpu/file_demo_proc.s 8,355 File I/O, demo processing
maincpu/style_data_init.s 8,246 Style data, task scheduling
maincpu/voice_synth.s 8,042 Sound generation, voice synthesis
maincpu/dsp_config_sysex.s 5,881 DSP config, SysEx handlers
maincpu/naka_style_bitmap.s 5,909 Style groups, bitmap data
maincpu/tonegen_voice_ctrl.s 5,185 Tone generator, voice control
maincpu/voice_midi_buf.s 4,202 Voice MIDI buffers

Total extracted code: ~384,000 lines across 94 include files (90% of main CPU source)

Subsystem Descriptions:

FDC (Floppy Disk Controller):

  • fdc_constants.s: Memory-mapped I/O addresses (0x110000 base), command codes (uPD765-compatible), status register bit definitions
  • fdc_routines.s: Complete FDC handler including FDC_COMMAND_DISPATCHER, FDC_HANDLER_01 through FDC_HANDLER_11, Reset_Floppy_Disk_Controller, Check_for_Floppy_Disk_Change

MIDI/Encoder:

  • midi_encoder_constants.s: MIDI CC value storage, raw encoder inputs, lookup table addresses
  • midi_encoder_routines.s: CPanel_EncoderDispatch, Encoder_ProcessModwheel, Encoder_ProcessVolume, Encoder_ProcessBreath, Encoder_ProcessFoot, Encoder_ProcessExpression

Control Panel:

  • cpanel_constants.s: State machine variables, RX/TX buffers, button state arrays with bit mappings, LED row/pattern mappings
  • cpanel_routines.s: Serial protocol handlers (CPanel_SM_*), packet processors (CPanel_RX_*), LED control, buffer management

SysEx (System Exclusive):

  • sysex_routines.s: ExcSendFunc, ExcPmemFunc (Panel Memory), ExcSmemFunc (Sound Memory), ExcCompFunc (Composer), ExcSeqFunc (Sequence), ExcMspFunc (MSP)

Feature Demo:

  • demo_routines.s: DemoModeFunc, DemoStyleTtlFunc, DemoSoundTtlFunc, DemoRhyTtlFunc

Computer Interface:

  • computer_interface_config.s: TtComputerConnection, MdCmptCnctFunc, MdPcgModeFunc, MdDrumTypeFunc, MdSetupLoadFunc
  • computer_interface_pcg.s: TtMdPcgOut, AcPcgOutGridBoxProc, PcgOutGridCheck, PcgOutSendFunc, MainPcgOutSend

MIDI Serial (SC0):

  • midi_serial_routines.s: INTTX0_HANDLER, INTRX0_HANDLER, READ_COM_SELECT_SWITCH, SC0 initialization

Sound Editor:

  • sound_editor_routines.s: 32 Sound Editor functions including SeMenuModeFunc, SeMenuTitleFunc, SeEasyTitleFunc, SeTonTon1/2TitleFunc, SePitPit1TitleFunc, SeAmpAmp1/2TitleFunc, SeFilLpq1TitleFunc, SeDigEffTitleFunc, SeCtr2/3TitleFunc, SeCopyTitleFunc, SeWrtMemTitleFunc, SeWrtSndTitleFunc

File I/O & Disk Operations (in maincpu/file_io/ subdirectory):

  • title_handlers.s: Entry handlers (LoadTtlJgFunc, SaveTtlJgFunc, SetupFlashFunc, FmmUtilityTitleFunc)
  • disk_operations.s: File operations (FileCopyFunc, FileRenameFunc, FmmFormatFunc, DiskNameFunc, DiskInfoFunc)
  • filename_password.s: UI routines (FmmPasswordFunc, FmmFileNameFunc)
  • composer_filters.s: Composer and filters (FmmComposerLoadFunc, FmmLoadFilterFunc, FmmSaveFilterFunc)
  • smf_operations.s: Standard MIDI File (FmmSmfLoadTitleFunc, SmfLoadAsFunc, FmmSmfFileNameFunc)
  • wallpaper.s: Wallpaper loading (FmmWallpaperLoadFunc)
  • single_load.s: Single file load (SingleLoadModeFunc, SingleLoadSrcFunc, SingleLoadDstFunc)
  • medley.s: All medley modes (FmmIntMedleyFunc, FmmDiskMedley*Func, FmmSmfMedleyFunc, FmmDocMedleyFunc)
  • misc_ui.s: Utilities (JumpInsertFunc, SetupOkFunc, PsFileNameBoxProc)

Sequencer (Reference Only):

  • sequencer_reference.s: Documents 61 sequencer functions scattered across the ROM (not extracted due to interleaving with other code)

GUI Constants:

  • gui_constants.s: Display dirty flags (0x0205E4), offscreen buffer addresses (0x043C00, 0x056800, 0x05FE00, 0x069400), screen dimensions (320x240 @ 8bpp)

Palettes:

Two color palettes have been extracted as binary includes:

  • Palette 1 at 0xEB37DE - first palette (inline in sequential section)
  • Palette 2 at 0xEEFAF0 - second palette (Palette_8bit_RGBA_2.bin)

Sub CPU Boot (100% COMPLETE!)

The Sub CPU boot ROM has achieved 100% byte-perfect reconstruction!

All routines fully disassembled:

  • SUB_8437 (0xFF8437) - Tone generator initialization loop
  • SUB_850E (0xFF850E) - Multi-register push/call wrapper
  • SUB_853A (0xFF853A) - Write register pairs to tone generator
  • COPY_WORDS (0xFF858B) - Word block copy using ldirw
  • FILL_WORDS (0xFF8594) - Memory fill with word values
  • CHECKSUM_CALC (0xFF859B) - Calculate checksum over memory range
  • SUB_8B37 (0xFF8B37) - LED/output bit manipulation routine
  • SUB_8B89 (0xFF8B89) - Inter-CPU communication handler (reads from 0x110000 latches)
  • SUB_8BD2 (0xFF8BD2) - Note/velocity calculation with lookup tables
  • SUB_8C75 (0xFF8C75) - Hardware register write helper (0x100000)
  • SUB_8C80 (0xFF8C80) - Hardware calibration routine with timeout loop
  • SUB_8D0A (0xFF8D0A) - Hardware parameter write (21 param pairs)
  • SUB_8F57 (0xFF8F57) - Hardware write with delay
  • SUB_FE80-FEC1 (0xFFFE80) - Debug/diagnostic routines (hex output, string output)
  • Vector trampolines and interrupt handlers

DMA Transfer Routines (0xFF8604-0xFF881E):

These routines handle DMA-based data transfer between the Sub CPU and Main CPU:

Routine Address Size Description
SendData_Chunked 0xFF8604 69 bytes Send data in 32-byte chunks via DMA
SendData_Block 0xFF8649 99 bytes Send single data block via DMA
SendCmd_E3 0xFF86AC 48 bytes Send E3 (payload ready) command
SendParams_E2 0xFF86DC 112 bytes Wait for DMA, then send E2 command
TwoPhase_Transfer 0xFF874C 211 bytes Two-phase DMA with E1 command, 200-cycle delays

Inter-CPU Communication Protocol:

  • Uses handshaking via INTERCPU_STATUS register at 0x34:
    • Bit 0: Sub CPU ready flag (set when ready, cleared when starting transfer)
    • Bit 1: Completion signal from interrupt handler
    • Bit 2: Gate for command processing in InterCPU_RX_Handler
    • Bit 4: Main CPU ready flag (polled by sub CPU)
  • Commands sent via INTER_CPU_LATCH at 0x120000:
    • E1 command: Multi-stage DMA transfer (two-phase with 200-cycle delays)
    • E2 command: Payload transfer (10-byte parameter block)
    • E3 command: Payload ready signal (sets bit 6 of SUBCPU_STATUS_FLAGS)
    • Other: Low 5 bits = byte count-1, high 3 bits = handler index from table

Key memory locations discovered:

  • DMA_BURST_CTRL (0x0102) - DMA burst mode configuration register
  • PAYLOAD_LOADED_FLAG (0x04FE) - Payload ready indication flag
  • DMA_SETUP_PARAMS (0x0502) - DMA parameter storage (XWA, XDE, BC)
  • E1_XFER_PARAMS (0x050C) - E1 command transfer parameters (two-phase phase 1)
  • DMA_XFER_STATE (0x0516) - DMA transfer state: 0=idle, 1=single xfer, 2=two-phase
  • E2_XFER_PARAMS (0x053E) - E2 command transfer parameters (two-phase phase 2)
  • AUDIO_HW_BASE (0x100000) - Audio hardware registers (DSP/DAC)

Encoding fixes applied:

  • jrl T (3-byte relative long jump) vs jp (4-byte absolute)
  • ldir encoding: TMP94C241 uses 83 11, ASL generates 85 11
  • ld r, imm8 encoding: TMP94C241 uses different opcodes for A, D, E, L, W
  • ld (XIX/XHL), imm16 encoding: 4-byte vs 3-byte
  • ld (24-bit addr), imm16 encoding: 7-byte LD_MEM24_IMM16 macro

This marks the second 100% complete ROM in the project, after Sub CPU Payload!

Table Data (66.70% incorrect)

The Table Data ROM contains the first-stage bootloader, Feature Demo presentation data, and various lookup tables.

First-Stage Bootloader (100% matching):

The boot code section (0x9FB4D2-0x9FFFFF, 19,246 bytes) is now 100% byte-matching. This includes:

Component Address Range Size Description
Boot_BitMaskTable 0x9FB4D2-0x9FB4E7 22 bytes Initialization data tables
Boot_Init 0x9FB4E8-0x9FB704 540 bytes CPU/memory controller initialization
Boot_EnterHalt 0x9FB705-0x9FB73F 59 bytes HALT handler and interrupt dispatcher
Boot_ClearRAM 0x9FB740-0x9FB7F1 178 bytes RAM initialization and data copy
Boot routines (pre-LZSS) 0x9FB7F2-0x9FC8C1 4,304 bytes Flash update, FDC, display utilities
LZSS Decoder Suite 0x9FC8C2-0x9FCA4F 872 bytes Complete decompression subsystem
Boot routines (post-LZSS) 0x9FCC2A-0x9FFEE0 12,982 bytes Remaining boot utilities
RESET_HANDLER 0x9FFEE0-0x9FFEFF 32 bytes Entry vector (JP to Boot_Init)
Interrupt vectors 0x9FFF00-0x9FFFFF 256 bytes TMP94C241F vector table

LZSS Decoder Routines (fully disassembled):

Routine Address Size Purpose
LZSS_ReadByte 0x9FC8C2 115 bytes Read from compressed stream with sector buffering
LZSS_OutputByte 0x9FC935 63 bytes Write decompressed bytes with 32-bit batching
LZSS_OutputByte_Alt 0x9FC974 63 bytes Alternative output for flash update mode
LZSS_ParseHeader 0x9FC9B3 157 bytes Parse/validate firmware header, setup source
LZSS_Decompress 0x9FCA50 474 bytes Main decompression loop with sliding window

The LZSS decoder uses the SLIDE4K format (4KB sliding window, 12-bit offset, 4-bit length) and is invoked during flash firmware updates to decompress packed firmware files.

Key discovery: The interrupt vector table contains boot-time addresses (0xFFxxxx) because at reset the table_data ROM is mapped at 0xE00000-0xFFFFFF, not 0x800000-0x9FFFFF. The bootloader reconfigures the memory controller to remap the ROMs.

System Update Bitmaps (shared with Main CPU):

The Table Data ROM contains 8 system update message bitmaps at 0x9FA156. These are 1-bit monochrome images (224x22 pixels, 616 bytes each) that are byte-identical to the Main CPU versions. The disassembly source shares the same bitmap files between both ROMs.

Address Image Purpose
0x9FA156 Flash Memory Update Update in progress
0x9FA3BE Now Erasing Flash erase in progress
0x9FA626 FD to Flash Memory Copying from floppy
0x9FA88E Completed Operation complete
0x9FAAF6 Please Wait Processing
0x9FAD5E Change FD 2 of 2 Multi-disk prompt
0x9FAFC6 Illegal Disk Invalid disk error
0x9FB22E Turn On AGAIN Restart instruction

ROM Interleaving: The Table Data ROM uses 16-bit word-level interleaving across two physical chips (odd.ic1 and even.ic3). The combined ROM file kn5000_table_data.rom is created by alternating 16-bit words from each chip, not individual bytes.

Shared Code with Main CPU (bootloader routines):

Analysis revealed that several bootloader routines in the Table Data ROM are byte-identical or semantically identical to utility routines in the Main CPU ROM. This indicates both ROMs were built from common source code.

Shared Source Files (in shared/ directory):

The disassembly now uses actual shared source files that are included by both ROMs:

File Lines Description
shared/vga_constants.s 58 VGA register addresses and constants
shared/vga_init.s 135 VGA initialization data tables
shared/vga_init.s 28 VGA init completion code
shared/vga_io.s 51 VGA register I/O routines (byte-identical)
shared/boot_call_init_handlers.s 87 Init handler dispatch (conditional assembly)
shared/boot_routines.s 630 Boot initialization routines
shared/boot_routines.s 85 LZSS compression decoder

Total shared source: 1,074 lines across 7 files

Shared Routine Mapping:

Table Data Main CPU Size Routine
0x9FCDFC-0x9FCE1D 0xEF5141-0xEF515F 30-34 bytes Write_VGA_Register, Read_VGA_Register
0x9FB70A-0x9FB73F 0xEF086F-0xEF08A3 53-54 bytes Boot_CallInitHandlers
0x9FCD9A-0x9FD7BD 0xEF50DF-0xEF5B02 2,596 bytes VRAM_FillRect and display routines
0x9FBC3C-0x9FBECF 0xEF3CE0-0xEF3F73 660 bytes Boot utility routines
0x9FB4F2-0x9FB622 0xEF03D0-0xEF0500 305 bytes Boot initialization code

Conditional Assembly:

Some shared routines have minor encoding differences between ROMs (e.g., byte vs word comparison, different helper addresses). These are handled with conditional assembly:

; Example from boot_call_init_handlers.s
IF INIT_FLAG_COMPARE_WORD
  ; table_data: CP (0xFFFEEE), 0xFFFF (7 bytes)
  db 0D2h, 0EEh, 0FEh, 0FFh, 03Fh, 0FFh, 0FFh
ELSE
  ; maincpu: CP (0xFFFEEE), 0xFF (6 bytes)
  db 0C2h, 0EEh, 0FEh, 0FFh, 03Fh, 0FFh
ENDIF

Each ROM defines the required parameters before including the shared file.

Compressed Data Identified:

Address Contents Format
0x8E0000 Compressed preset/parameter data SLIDE4K LZSS (~33KB decompressed)
0x9FA000 Update file type headers “SLIDE” markers

Note: The LZSS data at 0x8E0000 decompresses to ~33KB of parameter data, NOT the ~192KB Sub CPU executable. See LZSS Compression for analysis.

Reference disassembly: original_ROMs/table_data_bootcode.unidasm (6,704 lines)

Remaining work:

  • Feature Demo XML and BMP images (documented but not all extracted)
  • Analysis of decompressed parameter data from 0x8E0000
  • Trace Sub CPU payload transfer path during boot
  • Various lookup tables and data structures
  • Boot routines in bootcode_pre_lzss.bin and bootcode_post_lzss.bin

Technical Notes

TMP94C241F vs TMP96C141

Instructions unique to TMP94C241F that require macro workarounds:

  • Memory-to-memory LD (not supported by TLCS-900)
  • Certain shift/rotate variants
  • Some MUL/DIV variants
  • LDI, LDIR, LDD, LDDR block transfer instructions
  • DMA control register access (LDC with DMAS/DMAD/DMAC/DMAM registers)

ASL Macro Workarounds (tmp94c241.inc)

The tmp94c241.inc file contains macros that emit raw byte sequences for unsupported instructions.

DMA Register Macros:

Macro Encoding Description
LDC_DMAS0_XWA e8 2e 00 Load DMA source 0 from XWA
LDC_DMAS2_XDE ea 2e 08 Load DMA source 2 from XDE
LDC_DMAS2_XHL eb 2e 08 Load DMA source 2 from XHL
LDC_DMAD0_XWA e8 2e 20 Load DMA destination 0 from XWA
LDC_DMAD0_XBC e9 2e 20 Load DMA destination 0 from XBC
LDC_DMAD2_XWA e8 2e 28 Load DMA destination 2 from XWA
LDC_DMAC0_WA d8 2e 40 Load DMA count 0 from WA
LDC_DMAC0_A c9 2e 42 Load DMA count 0 from A
LDC_DMAC2_A c9 2e 4a Load DMA count 2 from A
LDC_DMAC2_BC d9 2e 48 Load DMA count 2 from BC
LDC_DMAC2_WA d8 2e 48 Load DMA count 2 from WA

Additional Sub CPU Boot ROM Macros:

Macro Encoding Description
INC_0_XBC e9 60 Increment XBC by 1
PUSH_WORD value 0b LL HH Push 16-bit immediate
CP_pXWA_WORD value 90 3f LL HH Compare (XWA) with 16-bit immediate
CP_pXBC_d_WORD d,val 99 dd 3f LL HH Compare (XBC+d) with 16-bit immediate
LDA_XWA_IMM24 value f2 LL MM HH 30 Load 24-bit address into XWA
CALR target 1e LL HH Call relative (3-byte encoding)
CALL_ABS24 target 1d LL MM HH Call absolute with 24-bit address
JRL_T target 78 LL HH Jump relative long (always true)
LDIR_94 83 11 Block copy (TMP94C241 encoding)
LD_A value 21 nn Load immediate to A register
LD_D value 24 nn Load immediate to D register
LD_E value 25 nn Load immediate to E register
LD_L value 27 nn Load immediate to L register
LD_W value 20 nn Load immediate to W register
LD_pXIX_IMM16 value b4 02 LL HH Store 16-bit imm to (XIX)
LD_pXHL_IMM16 value b3 02 LL HH Store 16-bit imm to (XHL)
LD_MEM24_IMM16 addr,val f2 LL MM HH 02 VV WW Store 16-bit to 24-bit addr

Stack Frame and Register Macros (DMA routines):

Macro Encoding Description
DEC_6_XSP ef 6e Decrement XSP by 6 (allocate stack frame)
INC_6_XSP ef 66 Increment XSP by 6 (deallocate stack frame)
LD_IZ_BC d9 8e Load IZ from BC
CP_IZ_imm16 val de cf LL HH Compare IZ with 16-bit immediate
SUB_IZ_imm16 val de ca LL HH Subtract 16-bit immediate from IZ
LD_C_IZL c7 f8 8b Load C from low byte of IZ
EXTZ_WA d8 12 Zero-extend A to WA
EXTZ_BC d9 12 Zero-extend C to BC

Stack-Relative Addressing Macros:

Macro Encoding Description
LD_A_pXSP_d disp 8f dd 21 Load A from (XSP+disp)
LD_XDE_pXSP_d disp af dd 22 Load XDE from (XSP+disp)
LD_XBC_pXSP_d disp af dd 21 Load XBC from (XSP+disp)
LD_pXSP_d_A disp bf dd 41 Store A to (XSP+disp)
LD_pXSP_d_XDE disp bf dd 62 Store XDE to (XSP+disp)
ADD_pXSP_d_XWA disp af dd 88 Add XWA to (XSP+disp)

Encoding Differences

ASL sometimes chooses different (but functionally equivalent) encodings than the original ROM:

Instruction Original ASL Default Notes
lda XWA, imm16 5-byte (24-bit addr) 4-byte (16-bit) Use LDA_XWA_IMM24 macro
call addr 3-byte calr 4-byte call Use CALR macro when target is within range
jp addr 3-byte jrl T 4-byte jp Use JRL_T macro for relative long jump
ldir 83 11 85 11 Use LDIR_94 macro for TMP94C241 encoding
ld A, imm8 21 nn Different Use LD_A macro
ld D, imm8 24 nn Different Use LD_D macro

These encoding differences cause byte mismatches even when the code is functionally correct.

Build Process

cd kn5000-roms-disasm
make all              # Build all ROMs
python compare_roms.py # Verify against originals

Recent Improvements

March 2026: Sound Data C Struct Conversion and Code Quality

15 sound data files converted to C structs — Raw byte arrays in maincpu/audio/sound_data/ converted to typed C struct arrays with named fields, section labels, and _Static_assert size verification. Files include piano, guitar, strings/vocal, organ, brass, flute, sax/reed, mallet/orch perc, drum kits, and more. The sepaout_config.s data was also converted to a C struct with separator/output configuration fields.

1,398 generic labels renamed to semantic names — Remaining hex-suffixed parameter labels, .set aliases, and address-based labels across all source files replaced with sequential or descriptive names.

LLVM backend improvements — Misaligned memory access fix, D7 prevbank disassembler fix, SRI prefix encoding fix for R+d16 addressing, F0 8-bit direct memory support, auto-increment addressing, round-trip assembly tests, .word/.hword directive support, and calr relative call fix. Backend documentation added.

MAME driver style audit passed — All upstream PR branches reviewed for MAME code style compliance.

March 2026: Complete LABEL_XXXXXX Elimination

All address-based labels replaced with semantic names across the entire ROM set. Every LABEL_XXXXXX placeholder (e.g., FileIO_ValidateWithExtHeader) has been analyzed and renamed to a meaningful, descriptive name reflecting its purpose (e.g., FileIO_ValidateWithExtHeader, SeqByteBlock_DispatchJumpTable). This represents the completion of a major project goal:

  • ~10,000 labels renamed across 94+ source files in maincpu alone
  • 0 LABEL_XXXXXX remaining in any ROM directory (maincpu, subcpu, hdae5000, table_data, custom_data)
  • All renames verified with full make clean && make all + compare_roms.py (100% byte match maintained)
  • Cross-file references updated atomically to prevent broken symbol errors

This milestone significantly improves codebase navigability and makes the disassembly a true semantic representation of the firmware, not just a mechanical address-to-instruction translation.

March 2026: R+d16 Addressing, Semantic Naming, Symbolic Handlers, Waveform ROM

357 R+d16 .byte instructions converted to native mnemonics — With new LLVM backend support for R+d16 source memory addressing (C3/D3/E3 SRI prefix), 357 .byte fallbacks across maincpu and subcpu ROMs were converted to native assembly. Largest contributors: midi_dispatch_handlers (173), subprogram (26), sequencer_ui (25), scoop_display (23), graphics_text_vga (22). All 6 ROMs maintain 100% byte match.

16 NAKA UI widget files renamed to semantic names — Previously opaque address-based filenames (e.g., ui_widgets_EBxxxx.s) renamed to descriptive names based on reverse engineering research (e.g., technichord_string_data.s, sound_editor_widgets.s), improving codebase navigability.

All 26 NAKA widget C files converted to named struct format — Raw unsigned char data[N] = { 0xNN, ... } byte arrays replaced with packed C structs using named fields, NAKA_HDR() type headers, NAKA_ADDR() pointer symbol resolution, and _Static_assert size verification. Pointer tables have 800+ external symbols resolved via ELF symbol table. Named regions derived from .equ offsets in assembly wrappers provide clear structural decomposition of widget descriptors, string tables, bitmap data, palette entries, and handler configuration.

All C screen data .handler fields now use symbolic references — 52 handler symbols across 2 linker scripts (maincpu.ld, ctlonly.ld) replace raw numeric addresses in the C-compiled screen data structures, enabling cross-reference navigation and maintaining the link between C UI definitions and assembly handler routines.

IC307 waveform ROM format fully decoded — The waveform ROM (IC307, 4MB) format has been fully reverse-engineered: 16-bit signed PCM samples at 32kHz, organized as a sample table (512 entries with start/end/loop addresses) followed by raw sample data. See Waveform ROM Format for full documentation.

Binary Include Splitting

Per project policy, binary includes are split when code references internal addresses. This ensures:

  • Cross-references use symbolic labels instead of hardcoded addresses
  • Smaller binary files are easier to analyze
  • Data structure boundaries are explicitly marked

Recently split:

  • e02510_e06baf.bin split into three parts:
    • e02510_e0458f.bin - Instrument category data (PIANO, ORGAN, etc.)
    • e04590_e04b2f.bin - GUITAR data
    • e04b30_e06baf.bin - STRINGS & VOCAL data
  • e06f30_e0adcf.bin split into four parts:
    • e06f30_e078f1.bin - FLUTE sound data
    • e078f2_e08baf.bin - Additional FLUTE data
    • e08bb0_e0914f.bin - SAX & REED sound data
    • e09150_e0adcf.bin - MALLET & ORCH PERC sound data
  • e0bb90_e0e974.bin split into seven parts for instrument data tables
  • e0b250_e0ba60.bin split into nineteen parts for orchestral pad data (many internal cross-references)

Control Panel Protocol Naming

Significant naming improvements applied to the control panel serial protocol code (0xFC3E00-0xFC7FFF):

Packet Processing:

  • CPanel_RX_ProcessWithFlag / CPanel_RX_Process - Entry points
  • CPanel_RX_ParseNext - Main packet processing loop
  • CPanel_RX_PacketHandlers - Jump table for packet type dispatch

Packet Type Handlers:

  • CPanel_RX_ButtonPacket - Button state packets (types 0, 1)
  • CPanel_RX_EncoderPacket - Rotary encoder data (type 2)
  • CPanel_RX_SyncPacket - Sync/ack packets (types 3, 4, 5)
  • CPanel_RX_MultiBytePacket - Multi-byte packets (types 6, 7)

LED and Initialization:

  • CPanel_UpdateLEDs - LED state transmission
  • CPanel_InitLEDBuffer - Serial/LED initialization
  • CPanel_InitButtonState - Button state array setup

Variables:

  • CPANEL_RX_PACKET_BYTE_1 / CPANEL_RX_PACKET_BYTE_2 - Incoming packet bytes (formerly CPANEL_UNUSED_2/3)
