KN7000 User Data & the Initial Data Disk

Some of the KN7000’s on-screen content — the built-in style names, the Favorites, the Custom panels — does not live in the firmware update images (kn7000_program.rom / kn7000_table.rom). It lives in a separate custom-data flash that ships blank and is programmed, once, from an “Initial Data” floppy disk during first setup. This page documents that subsystem, recovered by reverse-engineering the firmware’s disk-load/install path.

This is the same design the KN5000 uses — its MAME driver notes that the custom-data flash (IC19) “was dumped from a system that had it already programmed by the initial data disk” — one more piece of the shared codebase.

The custom-data flash

Property Value
Read view (CPU) 0x56000000 — a u32-offset directory archive at flash offset 0x200
Command/program window 0x96800000 — AMD/Fujitsu x16 command set (unlock writes to 0x9680AAAA / 0x96805554)
Chip 2 MB / 16 Mbit bottom-boot: MBM29LV160B, MX29LV160B or AT49BV16X4 (descriptor table at program 0x1CF9E0)
Driver FlashWordProgram 0x4847F721, FlashSectorErase 0x4847F75A, FlashReadAutoselect 0x4847F980, FlashReset 0x4847F6C7

A separate factory read-only data flash sits at 0x57000000 (rhythm/style data that extends the table ROM). In emulation both read as zero until dumped, so style names and Custom/Favorites content fall back to defaults.

The Initial Data disk (idd7000)

The disk carries four files. Each begins with a Technics tag matching the firmware’s disk-file dispatch tables (DiskFileTagTable 0x48664090, DiskFileExtTable 0x48664438), and installs to one of two destinations:

File Destination Contents
01CTMINI.AST custom flash Custom/Music-Stylist data; the payload is raw zlib/DEFLATE (no wrapper) starting at file offset 0x10. Version byte 0x01 = compressed flag; the u32 at +4 (0x1E0000) is the decompressed size. It inflates to the content of the writable custom flash (the 2 MB region the idd7000 disk programs — command window 0x96800000), landing at flash offset 0x20000 (0x1E0000 B fill it to the 2 MB end). Decoded, it carries the real style/sound names (Swing And Jive, Calypso Dance, Jazz Fusion, …)
02UMDINI.MD battery SRAM user-Memory style references (44 style-IDs)
03FAVINI.FAV battery SRAM Favorites (name + settings)
04HPGINI.HMP battery SRAM Home-Page (hotspots + an embedded BMP)

Only the .AST installs to flash; the rest go to battery-backed SRAM (favorites block 0x50083D72, magic "KN7000 SDDIR INF"). The extractor (extract_idd7000.py in the kn7000_extraction tools) parses all four and now decodes the .AST (raw DEFLATE) to a .flash.bin.

The .AST codec is plain zlib. The firmware links zlib 1.0.4 — its inflate error strings (unknown compression method, invalid window size, incorrect header check, need dictionary, incorrect data check) sit at 0x485CD20C, right after the style-type name table (8 Beat, 16 Beat, Dance Pop, … at 0x485CCF2C). The payload is a raw DEFLATE stream (no 2-byte zlib header) at file offset 0x10; inflating it with zlib.decompressobj(-15) yields exactly 0x1E0000 bytes = the custom-flash region from offset 0x20000 to the 2 MB end. (The earlier “Huffman/LZH, not zlib” and “LZSS-variant” readings were wrong — pylzss’s 1.1 MB partial was a false positive; the near-uniform byte histogram is just well-compressed DEFLATE output.) However, an empirical test (2026-07-07) showed that preloading the decoded image into the custom flash (dataflash 0x56020000) does not change the style names, and a read-tap recorded zero reads from the custom data-flash (0x56000000–0x561FFFFF) while the style list is displayed. So the decoded image is genuine user data, but it is not the source of the “all 8 Beat 1” style-list bug. That bug’s real mechanism — a different, undumped ~4.1 MB “Technics Rhythms” resource, with a shipped synthetic-ROM mitigation — is described under How the rhythm menu resolves a style name below; an earlier “templated at boot by 0x484420CB” theory was investigated and superseded by that finding.

Favorites, decoded

The four factory Favorites and what they recall (each setting is an ID whose & 0x00700000 bits select built-in / MEMORY / CUSTOM source):

  • Example — a mix of built-in rhythms and CUSTOM sounds
  • Cool Sounds ! — nine CUSTOM sound/style IDs (0x2014xx / 0x2600xx)
  • Cool Rhythms ! — nine built-in rhythm IDs
  • Entertainer — panel-setting IDs

The Home-Page image

04HPGINI.HMP embeds a 160×100 Windows BMP — a holiday-themed graphic (a red bow with holly over sheet music):

Initial Data disk home-page image, 160x100
The factory home-page image, carved from 04HPGINI.HMP (160×100, 2× shown)

It is byte-identical to the image already in the program ROM at 0x48745718 (shown in the Image Gallery as program_345718), so the disk simply re-installs the factory default.

The boot splash (and the “green screen”)

A real KN7000 opens with a 640×240 boot splash — three chrome music notes sweeping past the Earth toward a starburst, then the mirrored “KN7000” logo. Both frames are JPEGs already present in the dumped table ROM:

Frame Table-ROM address
Music notes in space 0x480566E8, 0x4805A32E
“KN7000” chrome logo 0x48066517, 0x4806B954

(Other 640×240 table-ROM images such as “Welcome to SX-KN7000” @0x48139EF0 belong to the demo mode, not the power-on splash.)

In the emulator, boot first showed a green screen where this animation should be. Fixing it took untangling two independent bugs:

  1. The display model. KN7000 pictures are not palettized — a picture pixel is a 12-bit (4:4:4) direct colour split across two work-RAM planes (0x500D4080 byte = 0xD0 | red4; companion 0x500F9880 byte = (green4<<4) | blue4). The firmware composites these into a 640×240 RGB565 image at 0x9CE00000 — the exact buffer the LCD controller scans. The driver now presents 0x9CE00000 directly, so the whole display (UI and pictures) is pixel-exact.

  2. The JPEG decoder. With the display fixed, the splash showed noise instead of green — the software JPEG decoder was producing garbage. The cause was a single unimplemented CPU instruction: the MN10300/AM33 udf07 op (a bit-search, BSCH) used in the decoder’s Huffman step. The CPU core was silently skipping it, desyncing the entire bit stream. Implementing it (bit position of the most-significant set bit) made the splash decode pixel-clean — verified against a reference decode of the same table-ROM JPEGs.

With both fixed, the emulated KN7000 now plays its real power-on splash — the chrome music notes sweeping over the Earth, then the mirrored “KN7000” logo. (Details in the driver’s display-dual-plane-direct-color.md and mn10300-udf-instructions-unimplemented.md notes.)

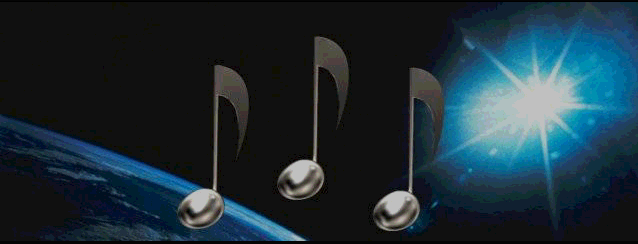

The emulated KN7000 boot splash, decoded and rendered correctly
The boot splash rendering correctly in emulation after both fixes (dual-plane display + the udf07 bit-search CPU op).

How the rhythm menu resolves a style name

Pressing a rhythm-genre button (e.g. BALLAD) resolves style names through a clean program-ROM chain — all now named in the disassembly:

  1. GetCurrentGenreIndex (0x48435A1B) reads the current genre (RAM 0x50034C3C).
  2. GenreStyleTable (0x48735EE4) — 16 records {name[16], styleCount@+0x11, styleListPtr@+0x14} — gives that genre’s style-ID list (BALLAD = 16 styles).
  3. Each style-ID’s source bits pick built-in / MEMORY / CUSTOM; ResolveStyleId (0x48435B33) maps it through StyleNumToBankSlotLUT (0x48734EE4).
  4. The display name comes from a different resource than the custom-data flash above: a “Technics Rhythms” name table that the selector 0x4843385E probes across six candidate windows (including the factory read-only flash at 0x57000000 and a last-resort software window at 0x54E00000), none of which is dumped. When every probe misses, the resolver falls back to a program-ROM stub (0x48729988, header count = 1), so every style row rendered as “8 Beat 1” regardless of its real style-ID.

So the “all 8 Beat 1” symptom was never the custom-data flash above (that theory — along with an earlier “templated at boot” theory — is superseded); it traces to the undumped ~4.1 MB rhythm-name flash (candidate chips: IC21 factory flash, or IC18+IC20 custom flash). The current mitigation is a synthetic ROM (kn7000_rhythms_synthetic.rom, built by tools/gen_technics_rhythms.py, flagged BAD_DUMP) mapped at the firmware’s own last-resort probe window 0x54E00000: it reconstructs the real, intact directory prefix (a truncated copy survives in the dumped table ROM at 0x483E828C) plus 52 real style names recovered from an intact secondary catalog, and honestly labels the remaining 168 factory names — which exist only on the undumped flash — as self-announcing placeholders (e.g. “BALLAD 04 ?”). The real fix is still a hardware dump of that flash.
